INDUSTRIES
- Construction
- Packaging
- Automotive
- Shoes & Apparel
- Gaskets & Seals
- Household Products
- Sports Equipment
MATERIALS
- All kinds of Foam
- Corrugated & Honeycomb
- Plastic Sheets
- Leather and Fabric
- Rubber
- Silicone
- Vinyl
- Sponge
- Various Materials
ADVANTAGES
- No hydraulic oil needed, clean, eco-friendly, highly flexible and cost-effective
- Changeover in seconds
- Approx. 250 strokes per hour
- Compact size, small floor footprint
- Vibration-free impact on flooring
- PLC-controlled and servo motor-driven
- Pure electric drive with minimal PM.
- High precision extends service life of cutting pads and dies
- One-hour training, easy to master
View machine in action

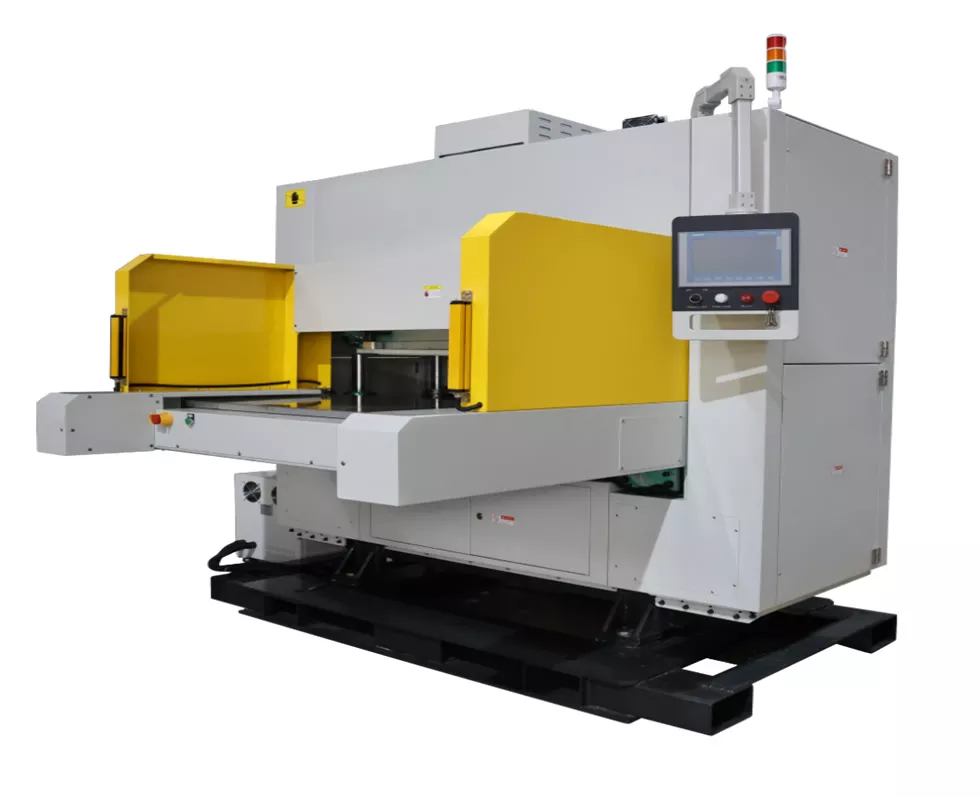

Machine Specification
| Equipment model | EP-40T4723SS | ||
| Max. cutting width (1) | mm Inch | 1,200 47 | |
| Max. cutting depth (2) | mm Inch | 600 23 | |
| Working table size(3) | mm Inch | 1,200 × 600 47 × 23 | |
| Overall dimensions | mm Inch | 2,075 × 2,100 × 1,860 81 × 82 × 73 | |
| Weight | kg lbs. | 3,200 7,055 | |
| Machine tonnage (4) | 40 tons | ||
| Full cycle time | 4-5 seconds | ||
| Compressed air requirement | 600 psi | ||
| Electrical requirements (5) | 480V, 3PH, 5Wires AWG6, 50/60 HZ | ||
| Electrical power capacity | 11 KW | ||
| (1) (2) Max. cutting width and depth are max. dimension of die board. (3) (4) Various sizes and tonnages available. (5) This is the standard electricity configuration, can be customized for your machine. | |||
