INDUSTRIES
- Food & Catering Packaging
- Electronics & Electrical Products
- Gift & Premium Packaging
- Medical & Pharmaceutical
- Industrial & Automotive
- Agriculture & Horticulture
- E-commerce & Logistics
PRODUCT TYPES
- Egg trays, food containers & coffee cup holders
- Electronics protective inserts
- Protective inserts for gift and premium packaging
- Medical device trays & pharmaceutical packaging inserts
- Automotive component trays
- Seedling trays & nursery pots
- Shipping corner protectors
- Cushioning packaging
ADVANTAGES
- High-precision positioning (±0.1 mm)
- Energy-efficient design with 30–50% lower energy consumption
- Fast response & high productivity with 25–40 second forming cycles
- Precise pressure & temperature control for consistent product quality
- High automation for feeding, counting and packaging
- Low-noise operation, no hydraulic noise
- Intelligent monitoring for stable production
- User-friendly HMI for easy operation and labor saving
View machine in action

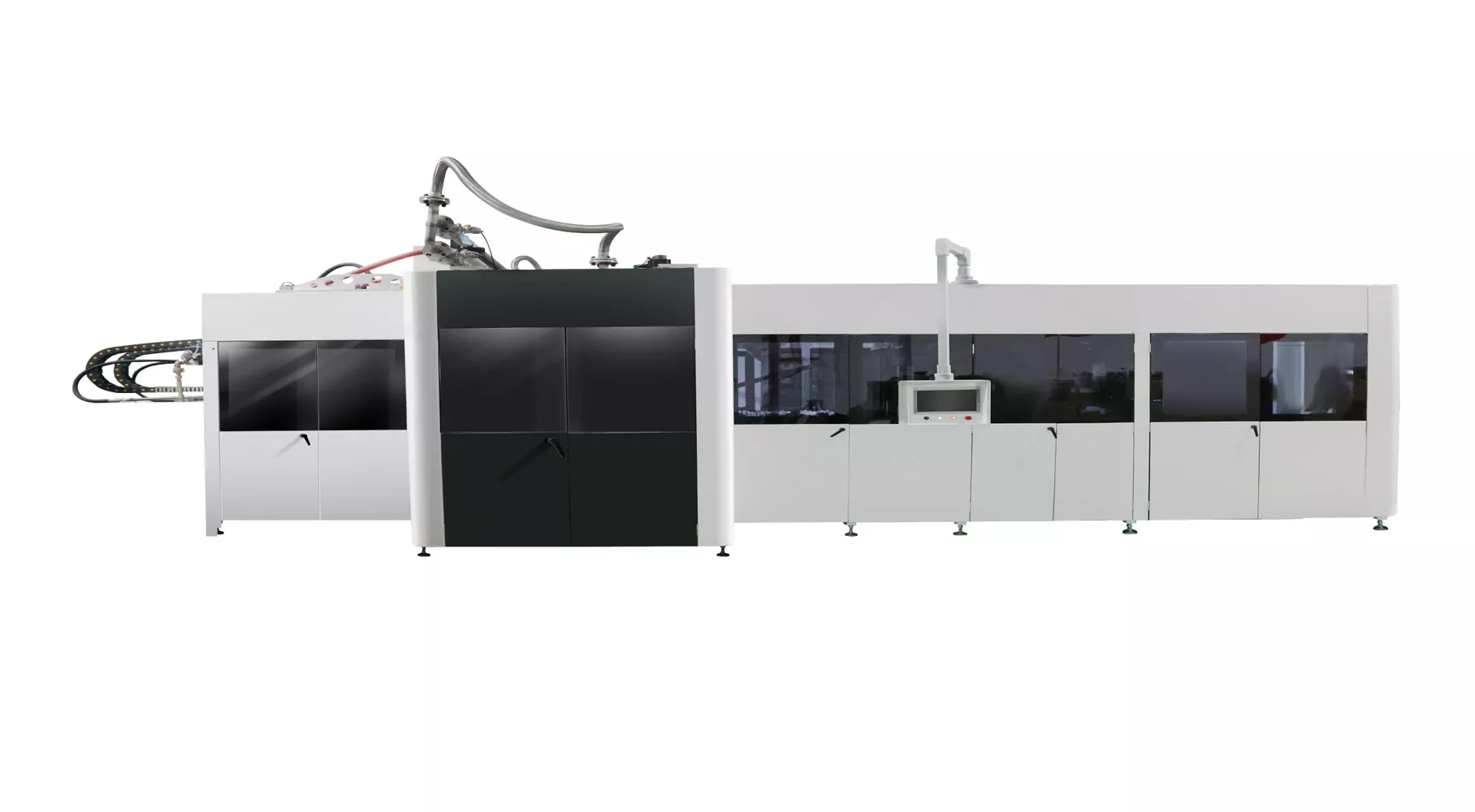

Machine Specification
| AMP3730 | |
| Category | Specifications |
| Equipment Dimensions | 9,300*3,500*3,200 mm |
| Platen Size | 950*780 mm |
| Max Product Height | 80 mm |
| Total Motor Power | 68 KW |
| Mold Temperature Controller | 103 KW |
| Air Pressure | 0.5-0.6 mPa |
| Power Supply | AC380V/50Hz |
| Vacuum | -0.06 |
| Main Machine Power Consumption/Hour | 6 kWh |
| Mold Temperature Controller Power Consumption/Hour | 46 kWh |
| Electricity Consumption | < 4,000 kWh/ton (Full system) |
| Capacity | 25,000 - 38,000 units / 24 hours |
| Water Consumption | 2 - 3 tons / 24 hours |
| Hot Press Max Closing Height | 480 mm |
| Hot Press Min Closing Height | 400 mm |
| Heating Method | Thermal Oil |
| Hot Press Lifting Stroke | 190 mm |
| Trimming Lifting Stroke | 190 mm |
| Punching Speed (no feeding) | 330 mm/s |
| Max Cutting Pressure | 80 Tons |
| Cutting Accuracy | ± 0.1 mm |
| Positioning Accuracy | ± 0.1 mm |
| Main Materials | A3 Steel Plate + Square Tubing |
| Automatic Mold Cleaning | Configurable cleaning modes |
| Automatic Mold Cleaning Water Pressure | 1.5mpa |
| Total Weight | Approx. 22 Tons |
| Pulp Overflow Method | Rear-side overflow |
| Control System | Fully electric servo system with a touchscreen HMI; the Siemens PLC control system enables digital adjustment of cutting pressure, height, and depth, using absolute encoders and an automatic lubrication system. |
| PLC | Siemens |
| Machine Color | Manufacturer standard or customer specified |
| Accessories | Manuals, electrical schematics, dedicated tools |
