Slotter - ROBIN AUTOMATION

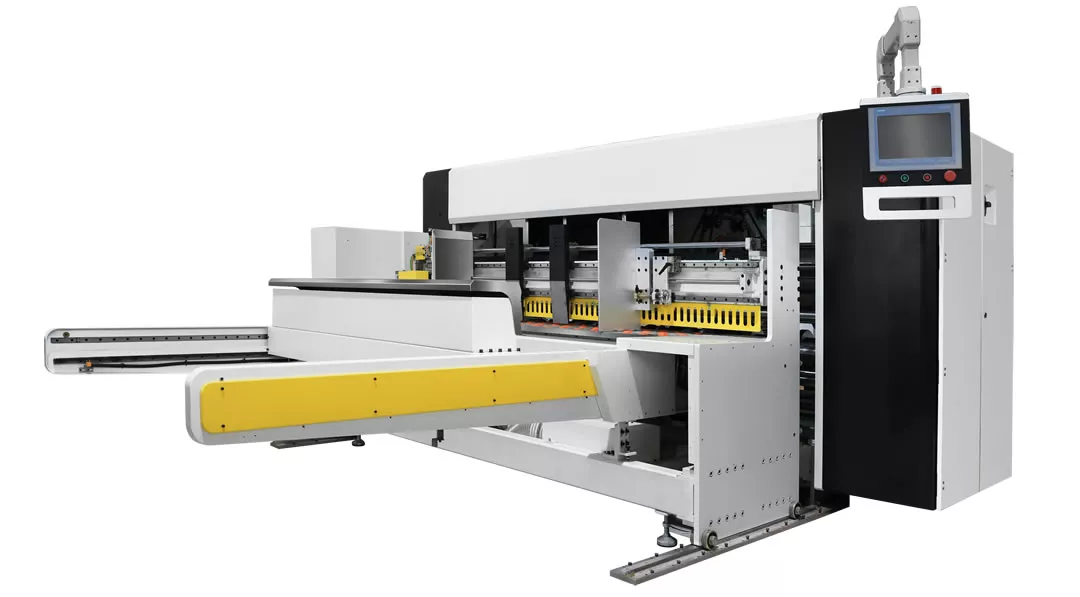

This machine converts pre-slit boards into finished boxes by creasing, slotting, trimming, and flap cutting. It features 5–10 second job changeovers and produces about one box per second. Suitable for both high-volume and short-run, multi-variety production.

Key Features of the Slotter

Ultra-Fast Setup & High Precision

Equipped with multiple servo motors and drives, all synchronized via a touchscreen PLC. New jobs can be set up in just 10 seconds. Servo motors perform synchronous motion adjustment, eliminating the usual 20–30 minute changeover time.

All-in-One Functionality

Despite its speed and compact design, the slotter handles all major box-making steps—slotting, creasing, trimming, flap cutting, and cross-cutting—in one pass. Supports continuous automated feeding with just one operator.

High-Speed Production

Capable of producing 1 box per second.

View machine in action

Introduction

With Slotter and Printer

Machine Specification

Equipment model		Slotter-100	Slotter-110	Slotter-118
Max. sheet width	mm Inch	2,500 100	2,800 110	3,000 118
Min. sheet size	mm Inch	60(W) x 240(L) 6(W) x 12(L)	60(W) x 240(L) 6(W) x 12(L)	60(W) x 240(L) 6(W) x 12(L)
Overall dimensions w/ Standard config.	mm Inch	3,800 x 3,840 x 2,170 150(L) x 151(W) x 85(H)	3,800 x 4,140 x 2,170 150(L) x 163(W) x 85(H)	3,800 x 4,340 x 2,170 150(L) x 170(W) x 85(H)
Weight	kg lbs.	8,500 18,000	9,000 20,000	9,500 21,000
Max. speed	m/min ft/min	150 490	150 490	150 490
Set up time		10 - 30 seconds
Compressed air requirement		90 - 100 psi
Electrical requirements (1)		480V, 3PH, 5Wires AWG8, 50/60HZ
Electrical power capacity		36KW	36KW	36KW
Applicable material		Up to double wall	Up to double wall	Up to double wall
(1) This is the standard electricity configuration, can be customized for your machine.
