INDUSTRIES
- Construction
- Packaging
- Automotive
- Shoes & Apparel
- Gaskets & Seals
- Household Products
- Sports Equipment
MATERIALS
- PE/PP/XPE/PU Foam
- Corrugated & Honeycomb
- Plastic Sheets
- Rubber
- Sponge
- Various Rigid Materials
ADVANTAGES
- Changeover in seconds
- 700-900 strokes per hour
- No hydraulic oil needed, cost-effective and clean
- Vibration-free impact on flooring
- PLC-controlled and servo motor-driven
- Pure electric drive with minimal PM.
- High precision extends service life of cutting pads and dies
- Direct stamping, no pre-cutting, high material utilization
- One-hour training, easy to master
View machine in action

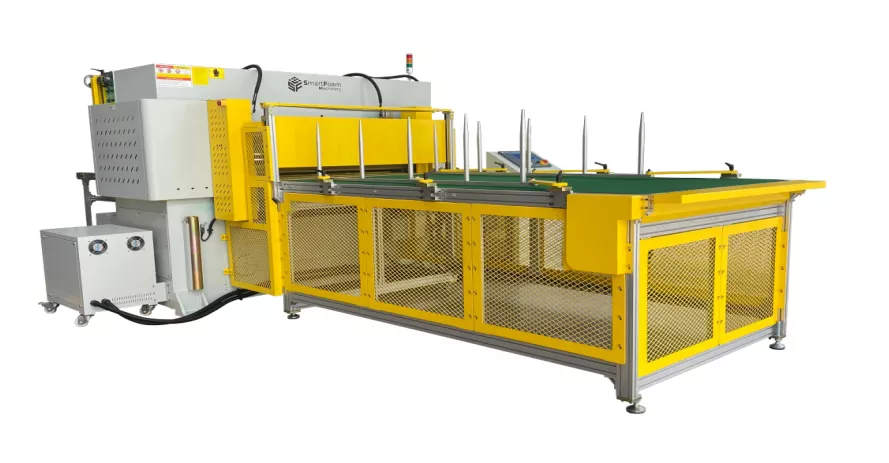

Machine Specification
| Equipment model | EP-200T6235CF | ||
| Max. cutting width (1) | mm Inch | 1,600 62 | |
| Max. cutting depth (2) | mm Inch | 900 35 | |
| Overall dimensions w/ conveyor | mm Inch | 6,391 × 3,109 × 2,147 251 × 122 × 85 | |
| Weight | kg lbs. | 11,000 24,200 | |
| Machine tonnage | 200 tons | ||
| Full cycle time (3) | 4-5 seconds | ||
| Compressed air requirement | 600 psi | ||
| Electrical requirements (4) | 480V, 3PH, 5Wires AWG6, 50/60 HZ | ||
| Electrical power capacity | 33.5KW | ||
| (1) (2) Max. cutting width and depth are max. dimension of die board. (3) Material and tool size dependent. Measured with 2'' thick 1.7 PCF extruded PE, the time doesn't include loading or set up time. (4) This is the standard electricity configuration, can be customized for your machine. | |||
