INDUSTRIES
- Construction
- Packaging
- Automotive
- Shoes & Apparel
- Gaskets & Seals
- Household Products
- Sports Equipment
MATERIALS
- All kinds of Foam
- Corrugated & Honeycomb
- Plastic Sheets
- Leather and Fabric
- Rubber
- Silicone
- Vinyl
- Sponge
- Various Materials
ADVANTAGES
- Changeover in seconds
- Approx. 500 strokes per hour
- Compact size, small floor footprint
- No hydraulic oil needed, cost-effective and clean
- Vibration-free impact on flooring
- PLC-controlled and servo motor-driven
- Pure electric drive with minimal PM.
- High precision extends service life of cutting pads and dies
- One-hour training, easy to master
View machine in action

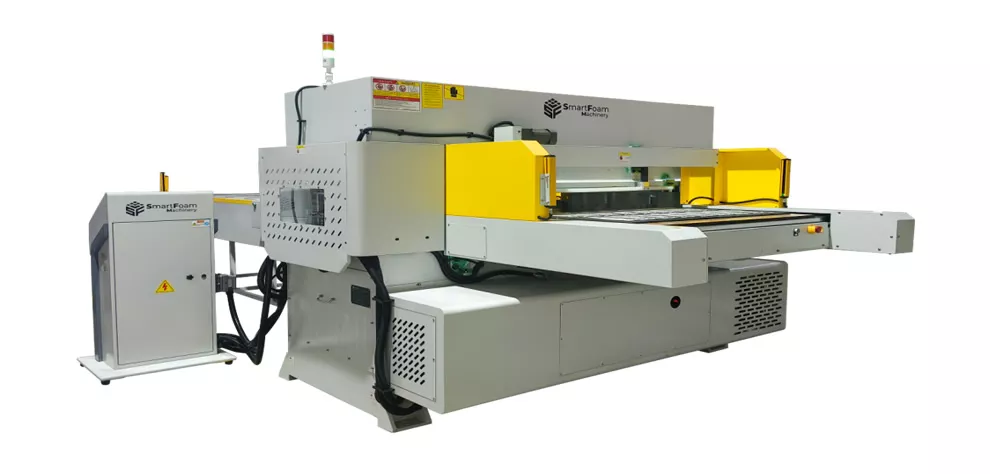

Machine Specification
| Equipment model | EP-40T4723DS | EP-150T5535DS | |
| Max. cutting width (1) | mm Inch | 1,200 47 | 1,400 55 |
| Max. cutting depth (2) | mm Inch | 600 23 | 900 35 |
| Overall dimensions | mm Inch | 2,080 × 1,840 × 2,080 81 × 72 × 81 | 3,850 × 2,930 × 2,390 151 × 115 × 94 |
| Weight | kg lbs. | 4,700 10,300 | 9,200 20,200 |
| Machine tonnage | 40 tons | 150 tons | |
| Full cycle time (3) | 4-5 seconds | ||
| Compressed air requirement | 600 psi | ||
| No. of station | 2 | 2 | |
| Electrical requirements (4) | 480V, 3PH, 5Wires AWG6, 50/60 HZ | ||
| Electrical power capacity | 25KW | ||
| (1) (2) Max. cutting width and depth are max. dimension of die board. (3) Material and tool size dependent. Measured with 2'' thick 1.7 PCF extruded PE, the time doesn't include loading or set up time. (4) This is the standard electricity configuration, can be customized for your machine. | |||
