INDUSTRIES
- Construction
- Packaging
- Automotive
- Shoes & Apparel
- Gaskets & Seals
- Household Products
- Sports Equipment
MATERIALS
- Foam
- Corrugated Board
- Plastic Corrugated Sheets
- Rubber
- Vinyl
- Textiles
- Leather
ADVANTAGES
- Integrated loading and unloading tables streamline the automation process
- Supports .DXF file format input
- Enhanced safety for operator handling
- Designed for continuous operation
View machine in action

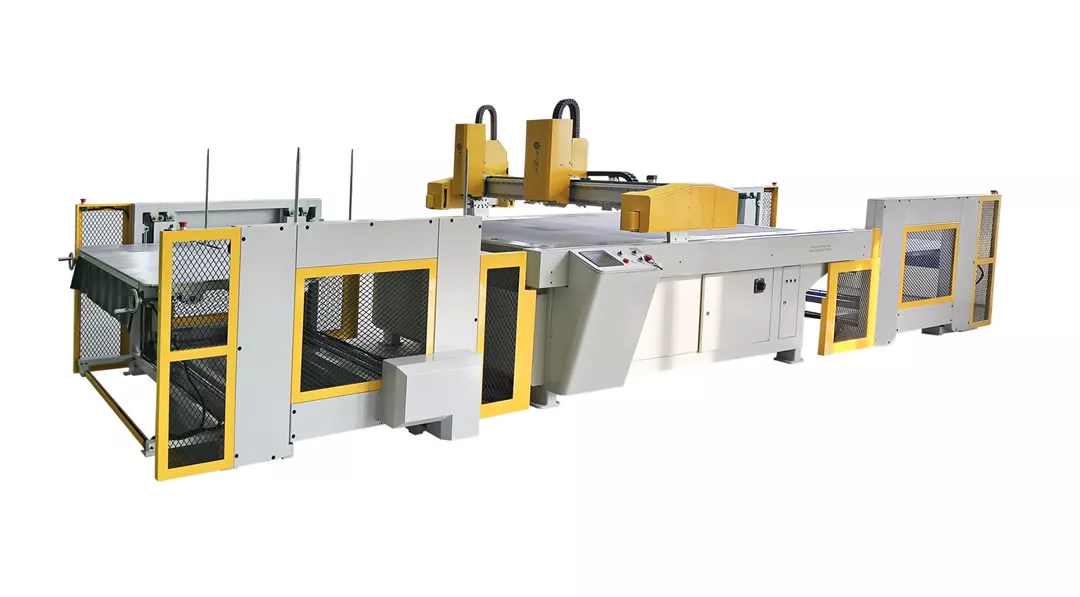

Machine Specification
| Equipment model | CT-53118 | SCT-53118 | SCT-53118D | ||
| Max. material size (1) | mm Inch | 3,000 × 1,350 × 100 118(L) × 53(W) × 4(H) | 3,000 × 1,350 × 100 118(L) × 53(W) × 4(H) | 3,000 × 1,350 × 100 118(L) × 53(W) × 4(H) | |
| Overall dimensions | mm Inch | 3,600 × 1,870 × 1,800 142(L) × 74(W) × 71(H) | 7,966 × 1,980 × 1,830 314(L) × 78(W) × 72(H) | 7,966 × 1,980 × 1,830 314(L) × 78(W) × 72(H) | |
| Weight | kg lbs. | 2,500 5,500 | 3,000 6,600 | 3,084 6,800 | |
| Max. Cutting speed (2) | mm/s Inch/s | 700 27.5 | 700 27.5 | 700 27.5 | |
| Working pressure | 0.45 - 0.7 mpa 65 - 100 psi | ||||
| No. of Cutting heads | 1 | 1 | 2 | ||
| Standard blade thickness | 1.5 0.06 | ||||
| Standard blade length | 30 - 120 1.18 - 4.72 | ||||
| Compressed air requirement | 90 - 100 psi | ||||
| Electrical requirements (3) | 480V, 3PH, 5Wires AWG8, 50/60HZ | ||||
| Electrical power capacity | 8KW | 8KW | 12KW | ||
| (1) (2) Max. material and speed are material dependent. Measured with 1.7 PCF extruded PE. (3) This is the standard electricity configuration, can be customized for your machine. | |||||
