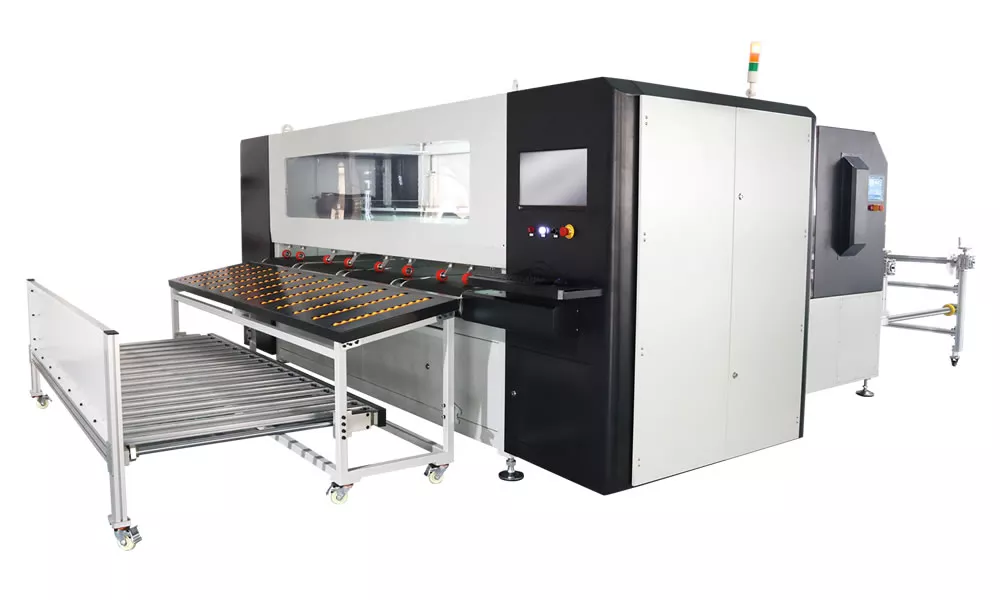

Digital Printer - Water Based Ink
The Printer delivers high-quality, 4-color output with crisp clarity and precision. Designed for efficiency, it offers near-instant setup—taking only seconds. It meets the demanding visual standards of Lithobox printing without requiring additional printing plates.
Key Features
Key Benefits
- No plate-making costs
- Easy to operate
- Compact footprint
- Highly cost-effective for short and medium runs
Ink Categories
• Water-Based
Key Features
- Direct-to-Substrate Printing
High-volume, single-pass production with 16+ print heads. - Scan-Based Printing
Precision printing for detailed graphics and short runs.
View machine in action
Machine Specification
| Equipment model | DP-100H8SW | DP-100H16DW | DP-100H8SWA | |
| Max. sheet width (1) | mm Inch | 2,500 100 | 2,500 100 | 2,500 100 |
| Min. sheet size (2) | mm Inch | 100(W) x 240(L) 4(W) x 9.5(L) | 100(W) x 240(L) 4(W) x 9.5(L) | 100(W) x 240(L) 4(W) x 9.5(L) |
Overall dimensions w/ Standard config. | mm Inch | 4,300 x 1,600 x 1,900 170(L) x 63(W) x 75(H) | 4,300 x 1,600 x 1,900 170(L) x 63(W) x 75(H) | 4,300 x 1,600 x 1,900 170(L) x 63(W) x 75(H) |
| Weight | kg lbs. | 2,800 6,160 | 2,800 6,160 | 3,200 7,055 |
| Max. speed | m/min ft/min | 50 164 | 50 164 | 50 164 |
| Set up time (3) | 3-5 seconds | |||
| Compressed air requirement | 90 - 100 psi | |||
| Electrical requirements (4) | 480V, 3PH, 5Wires AWG8, 50/60HZ | |||
| Electrical power capacity | 14KW | 16KW | 14KW | |
| Auto Feeder | NA | NA | Yes | |
| Applicable material | Cardboard and others | |||
(1) (2) (3) Max. material and speed are material dependent. measured with 32 ECT C flute corrugated. (4) This is the standard electricity configuration, can be customized for your machine. | ||||
