INDUSTRIES
- Construction
- Packaging
- Automotive
- Shoes & Apparel
- Gaskets & Seals
- Household Products
- Sports Equipment
MATERIALS
- PE/PP/XPE/PU Foam
- Corrugated & Honeycomb
- Plastic Sheets
- Rubber
- Sponge
- Various Rigid Materials
ADVANTAGES
- Movable punching head for better material utilization with low-cost small dies
- Changeover in seconds
- 700-900 strokes per hour
- No hydraulic oil needed, cost-effective and clean
- Vibration-free impact on flooring
- PLC-controlled and servo motor-driven
- Pure electric drive with minimal PM.
- High precision extends service life of cutting pads and dies
- Direct stamping, no pre-cutting, high material utilization
- One-hour training, easy to master
View machine in action

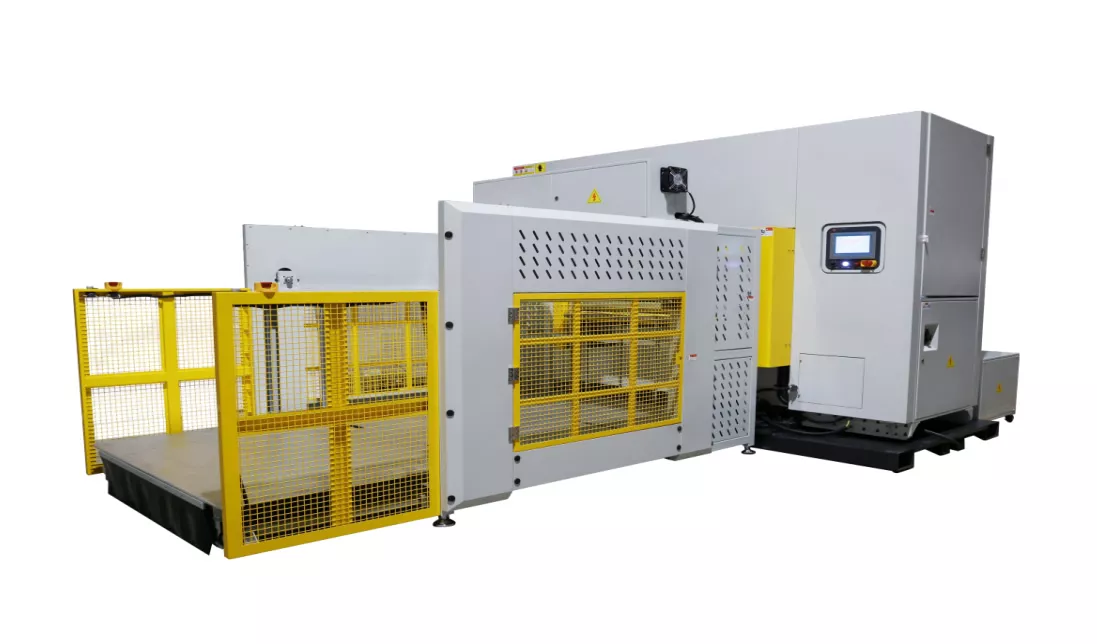

Machine Specification
| Equipment model | EP-60T5531TH | ||
| Max. cutting width (1) | mm Inch | 1,400 55 | |
| Max. cutting depth (2) | mm Inch | 800 31 | |
| Head size (3) | mm Inch | 750 × 810 29 × 31 | |
| Working table size (4) | mm Inch | 1,400 × 800 55 × 31 | |
| Horizontal effective working distance | mm Inch | 1,600 63 | |
| Overall dimensions | mm Inch | 3,810 × 3,200 × 2,760 150 × 126 × 108 | |
| Weight | kg lbs. | 7,700 16,976 | |
| Machine tonnage (5) | 60 tons | ||
| Full cycle time | 4-5 seconds | ||
| Compressed air requirement | 600 psi | ||
| Electrical requirements (6) | 480V, 3PH, 5Wires AWG6, 50/60 HZ | ||
| Electrical power capacity | 19KW | ||
| (1) (2) Max. cutting width and depth are max. dimension of die board. (3) (4) (5) Various sizes and tonnages available. (6) This is the standard electricity configuration, can be customized for your machine. | |||
