Box Maker - ROBIN AUTOMATION

The perfect solution for high-mix, low to medium-volume box production—faster and more cost-efficient.

Key Features of the Box Maker

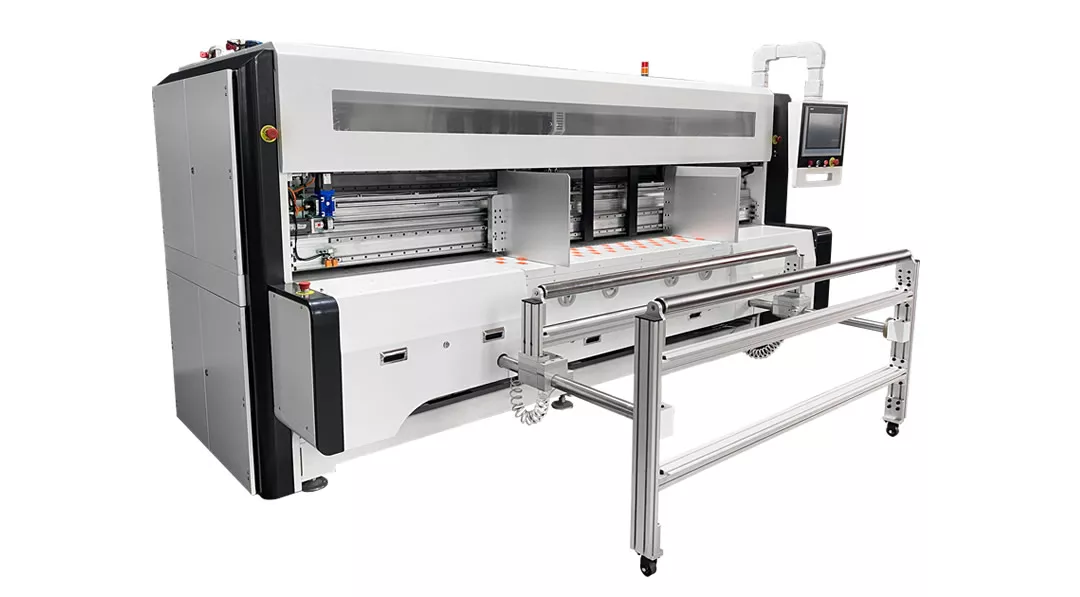

Box Maker

The Box Maker is the ideal solution for manufacturers producing high-mix, low-to-medium volume boxes—or those seeking a more cost-efficient, in-house alternative.

Key Benefits

Ultra-Fast Setup & High Precision Equipped with over 20 servo motors and drives, all synchronized via a touchscreen PLC, the system enables new project setups in just 10 seconds. The servo motors automatically perform synchronous motion adjustment, eliminating the usual 30–45 minute changeover time.

All-in-One Functionality

Despite its speed and affordability, the Eco-Box Maker does not compromise on features. It performs all critical box-making operations—including trimming, cutting, slotting, creasing, gluing, cross-cutting, and punching hand-hold holes—while still allowing a single operator to load raw material for continuous, automated feeding.

View machine in action

Introduction

Tequila Carton

Vigoro garden bed

Triple wall corrugated

Machine Specification

Equipment model		BM-100D	BM-100T
Max. sheet width (1)	mm Inch	2,500 100	2,500 100
Min. sheet size (2)	mm Inch	200(W) x 650(L) 8(W) x 26(L)	200(W) x 650(L) 8(W) x 26(L)
Overall dimensions w/ Standard config.	mm Inch	3,700 x 2,718 x 2,057 146(L) x 107(W) x 81(H)	3,700 x 2,718 x 2,057 146(L) x 107(W) x 81(H)
Weight	kg lbs.	6,000 13,200	6,000 13,200
Max. speed (3)	m/min ft/min	100 330	80 260
Set up time (4)		10 - 30 seconds
Compressed air requirement		90 - 100 psi
Electrical requirements (5)		480V, 3PH, 5Wires AWG8, 50/60HZ
Electrical power capacity		26kw	26kw
Applicable material		Up to double wall	Up to triple wall
No. of slitting blade		4	4
No. of creasing wheel		4	4
Standard configuration		Trim, Slit, Slot, Glue, Crease, die cut & Auto feed
Optional configuration		Digital printing
(1)(2)(3)(4) Max. material and speed are material dependent. measured with 32 ECT C flute corrugated. (5) This is the standard electricity configuration, can be customized for your machine.
