INDUSTRIES
- Construction
- Packaging
- Automotive
- Shoes & Apparel
- Gaskets & Seals
- Household Products
- Sports Equipment
MATERIALS
- PE / EPE / XPE Foam
- Corrugated Board
- Plastic Corrugated Sheets
- Honeycomb Panels
- Vinyl
- Sponge
- Various Rigid Materials
ADVANTAGES
- Automatically loads multiple material layers via conveyor for die-cutting
- Changeover in seconds
- PLC control with servomotor-driven accuracy
- User-friendly operation
- Minimal to zero vibration impact on flooring
View machine in action

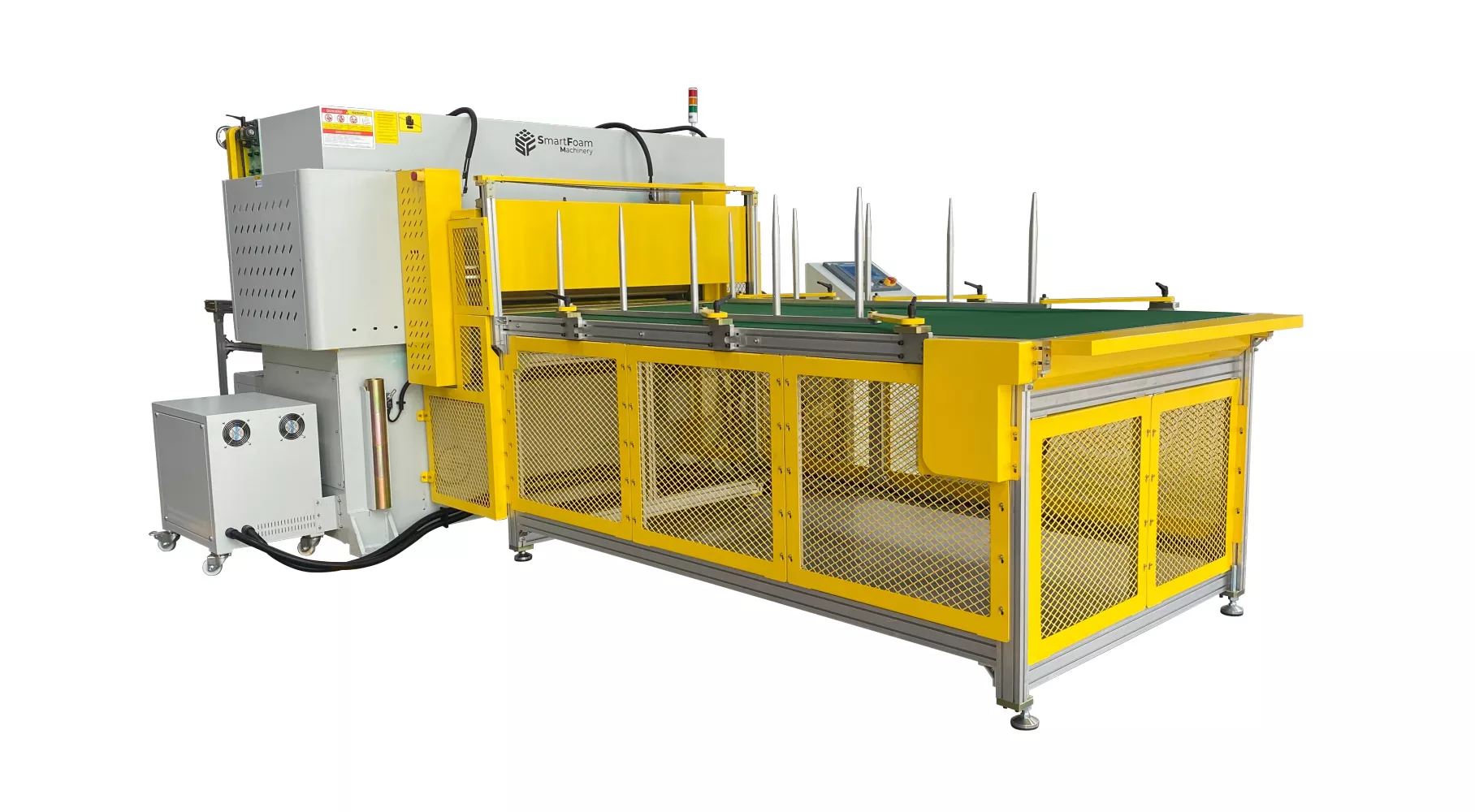

Machine Specification
| Equipment model | HP-200T6235CF | ||
| Max. cutting width (1) | mm Inch | 1,600 62 | |
| Max. cutting depth (2) | mm Inch | 900 35 | |
| Overall dimensions w/ conveyor | mm Inch | 6,391 × 3,109 × 2,147 251 × 122 × 85 | |
| Weight | kg lbs. | 11,000 24,200 | |
| Machine tonnage | 200 tons | ||
| Full cycle time (3) | 5-10 seconds | ||
| Compressed air requirement | 90-100 psi | ||
| Electrical requirements (4) | 480V, 3PH, 5Wires AWG6, 50/60HZ | ||
| Electrical power capacity | 33.5KW | ||
| (1) (2) Max. cutting width and depth are max. dimension of die board. (3) Material and tool size dependent. Measured with 2'' thick 1.7 PCF extruded PE, the time doesn't include loading or set up time. (4) This is the standard electricity configuration, can be customized for your machine. | |||
