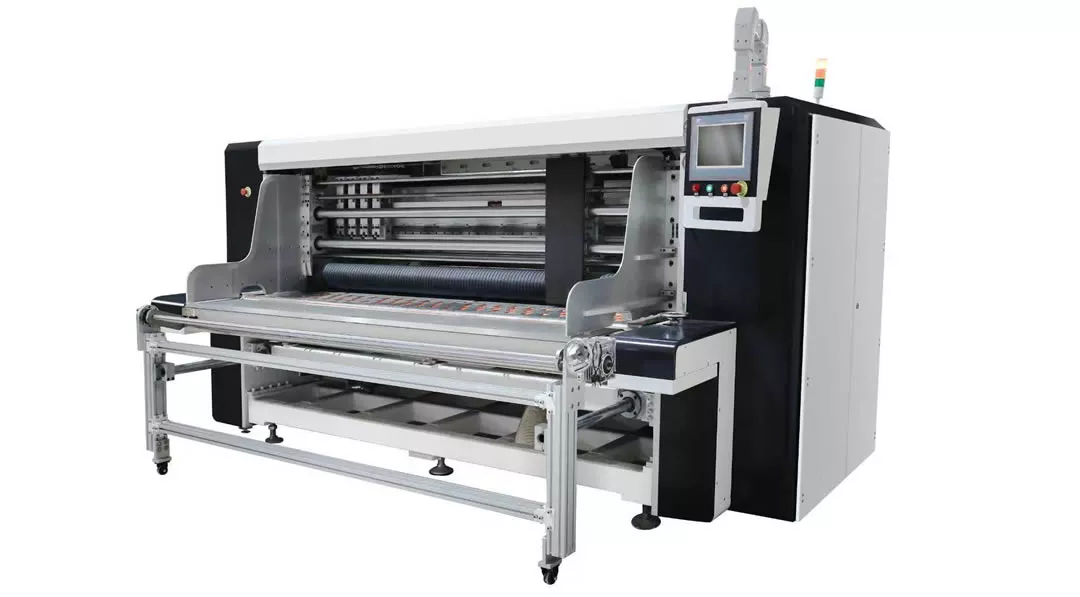

The slitter uses a PLC system, touchscreen interface, and servo motors for rapid, precise adjustments. It performs slitting and creasing in a single pass. With a production speed of 0.5 to 1 second per piece, it is highly suitable for both low-volume, high-mix orders and large-scale production. Ideal for corrugated sheet manufacturers and converters handling board slitting and creasing.

Key Features of the Slitter

Ultra-Fast Setup & High Precision

Equipped with servo motors and synchronized via a touchscreen PLC, the system enables new job setup in just 10 seconds, replacing the traditional 10–30 minute changeover time. The servo motors automatically perform synchronous motion adjustment, ensuring precise alignment with minimal operator intervention. Built-in safety features further enhance operator protection.

High Production Speed

Produces at a rate of approximately 0.5–1 second per piece.

View machine in action

Introduction

With Slotter and Printer

Machine Specification

Equipment model		Slitter-100	Slitter-110	Slitter-118
Max. sheet width	mm Inch	2,500 100	2,800 110	3,000 118
Min. sheet size	mm Inch	150(W) × 300(L) 6(W) × 12(L)	150(W) × 300(L) 6(W) × 12(L)	150(W) × 300(L) 6(W) × 12(L)
Max. sheet stack height	mm Inch	500 20	500 20	500 20
Infeed board thickness	mm Inch	0-15 0-0.59	0-15 0-0.59	0-15 0-0.59
Max. thickness without creasing	mm Inch	9 0.35	9 0.35	9 0.35
Max. board width (wheels aside)	mm Inch	1,900 74	1,900 74	1,900 74
Overall dimensions	mm Inch	2,200 × 3,800 × 2,100 86(L) × 150(W) × 83(H)	2,200 × 4,100 × 2,100 86(L) × 162(W) × 83(H)	2,200 × 4,300 × 2,100 86(L) × 170(W) × 83(H)
Weight	kg lbs.	6,700 15,000	7,500 16,500	8,000 18,000
Max. speed	m/min ft/min	120 393	120 393	120 393
Set up time		10 - 30 seconds
Compressed air requirement		90 - 100 psi
Electrical requirements(1)		480V, 3PH, 5Wires AWG8, 50/60HZ
Electrical power capacity		24KW	24KW	24KW
Applicable material		Up to double wall	Up to double wall	Up to double wall

(1) This is the standard electricity configuration, can be customized for your machine.
