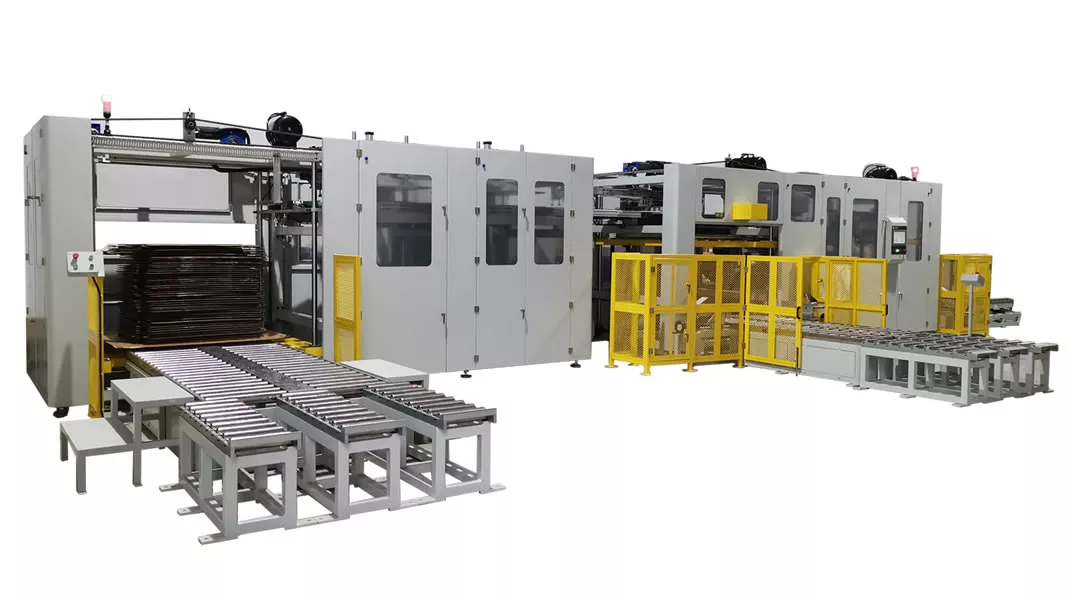

Pad builder - ROBIN AUTOMATION

Robin Automation’s Pad Builder automates the production of strong, multi-layer pads from eco-friendly materials like corrugated paper and honeycomb board, replacing slow manual labor with fast, consistent, and cost-effective output.

Key Features of the Pad Builder

Palletized Feeding

Handles full pallets of corrugated sheets for fully automated, uninterrupted operation.

Multi-Layer Bonding

Creates durable, multi-layer pads using high-strength adhesive for consistent quality.

Error Correction

Automatically identifies and adjusts stacking misalignments to ensure precise alignment.

Compression & Stacking

Applies uniform compression after gluing to secure firm bonding and perfect stacking.

View machine in action

Machine Specification

Equipment model		PB-606057T
Max. sheet size	mm Inch	1500 x 1500 60 x 60
Overall dimensions w/ Standard config.	mm Inch	15,699 x 6,120 x 2,688 51.5(w) x 20(d) x 8.8(h)
Weight	kg lbs.	15,000 33,000
Cycle time	Sec.	15
Set up time		30 minutes
Compressed air requirement		90 -100 psi
Electrical requirements (1)		480V, 3PH, 5Wires AWG6, 50/60HZ
Electrical power capacity		20.5kw
Applicable material		Corrugated pads
(1) This is the standard electricity configuration, can be customized for your machine.
