Lami pad builder - ROBIN AUTOMATION

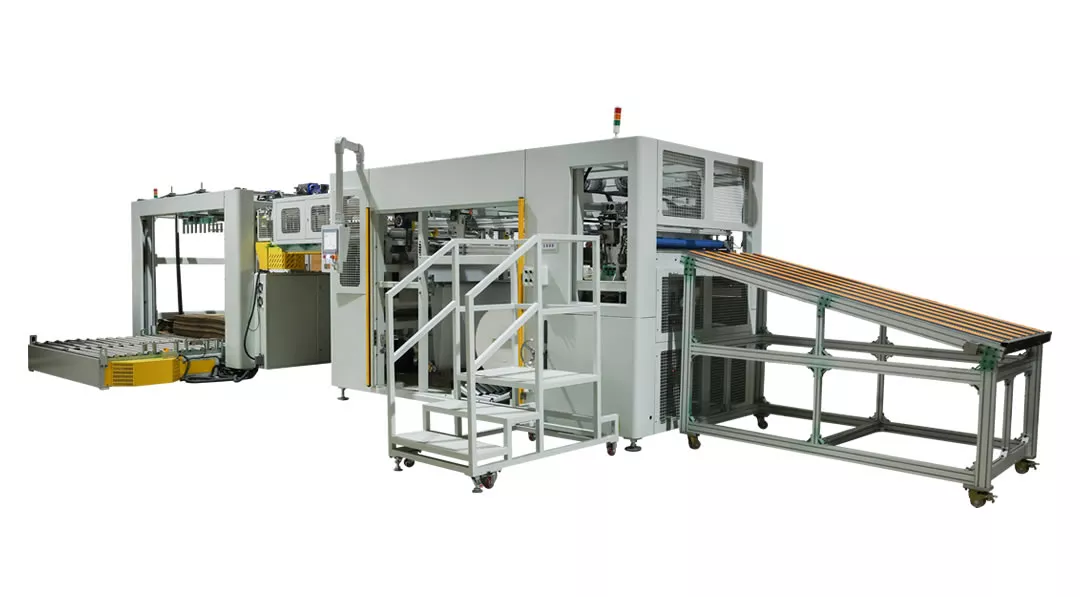

Automate your foam and film lamination to corrugated sheets with the Robin Automation's Lami Pad Builder. This all-in-one system is 5–10 times faster than manual methods, delivering higher product quality and a safer work environment.

Key Features of the Lami Pad Builder

Foam-to-Corrugated Bonding

Delivers strong, durable adhesion between foam or film and corrugated board for superior protective packaging.

Automated Operation

Maximizes efficiency with high-speed, fully automated processing—minimizing labor and improving throughput.

Compression After Gluing

Applies uniform pressure to strengthen the bond and enhance product durability.

Efficient & Reliable

Ensures consistent, high-quality lamination with precise control and minimal waste.

View machine in action

Machine Specification

Equipment model		LP-606001A
Max. sheet size	mm Inch	1500 x 1500 60 x 60
Overall dimensions w/ Standard config.	mm Inch	12,676 x 4,820 x 2,628 41.6(w) x 15.8(d) x 8.6(h)
Weight	kg lbs.	12,000 26,400
Cycle time	Sec.	15
Set up time		30 minutes
Compressed air requirement		90 -100 psi
Electrical requirements (1)		480V, 3PH, 5Wires AWG6, 50/60HZ
Electrical power capacity		33kw
Applicable material		thin foam to corrugated
(1) This is the standard electricity configuration, can be customized for your machine.
