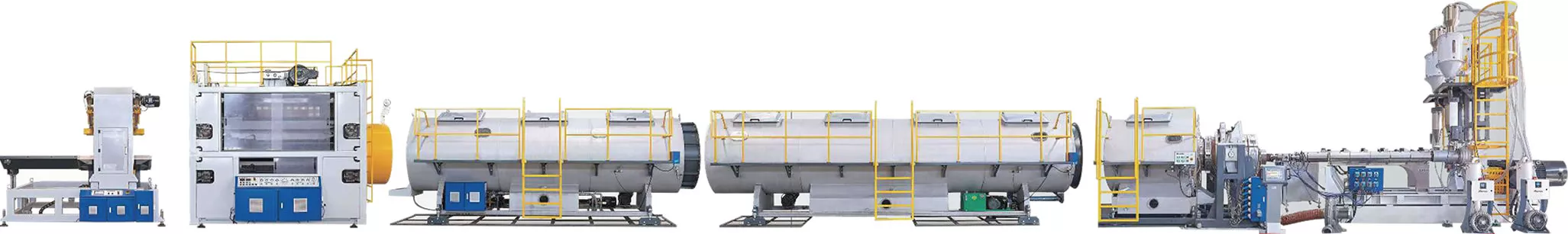

High-Performance Pipe Extrusion Line
Engineered for efficiency, precision, and reliability, our pipe extrusion line integrates advanced design features to deliver consistent high-quality output while reducing energy consumption.
Key Features
High Output & Energy Savings
Large L/D screw with spiral feed bush, powered by a permanent magnet synchronous servo motor.
Uniform Pipe Quality
Optional melt cooler ensures stable temperature for thick-walled pipes, preventing sagging and uneven thickness.
Advanced Pipe Head
Spiral flow design with vacuum mechanism maintains melt stability and shortens cooling length.
Smart Vacuum Control
Frequency conversion closed-loop system improves energy efficiency and production stability.
Precision Haul-Off
Servo-driven haul-off provides smooth operation across a wide speed regulation range.
Automatic Swarfless Cutting
On-line size adjustments with clean, accurate cutting for minimal waste.
Digital Production Management
Optional data acquisition system for transparent monitoring and analysis.
Consistent Reliability
Integrated system design ensures long-term stability, efficiency, and high-quality output.
View machine in action
Machine Specification
| Model No. | Pipe Range (mm) | Max. Output (Kg/h) | Production Line Length (mm) | |
| HDPE(H) - 160PE | 50-160 | 800 | 60 | |
| HDPE(H) - 250PE | 50-250 | 800 | 60 | |
| HDPE(H) - 315PE | 75-315 | 1200 | 60 | |
| HDPE(H) - 450PE | 110-450 | 1200 | 62 | |
| HDPE(H) - 630PE | 160-630 | 1800 | 65 | |
| HDPE - 800PE | 250-800 | 1800 | 66 | |
| HDPE - 1000PE | 400-1000 | 1800 | 70 | |
| HDPE - 1200PE | 450-1200 | 1800 | 71 | |
| HDPE - 1600PE | 630-1600 | 2000 | 82 | |
| HDPE - 2000PE | 1400-2000 | 2200 | 80 | |
